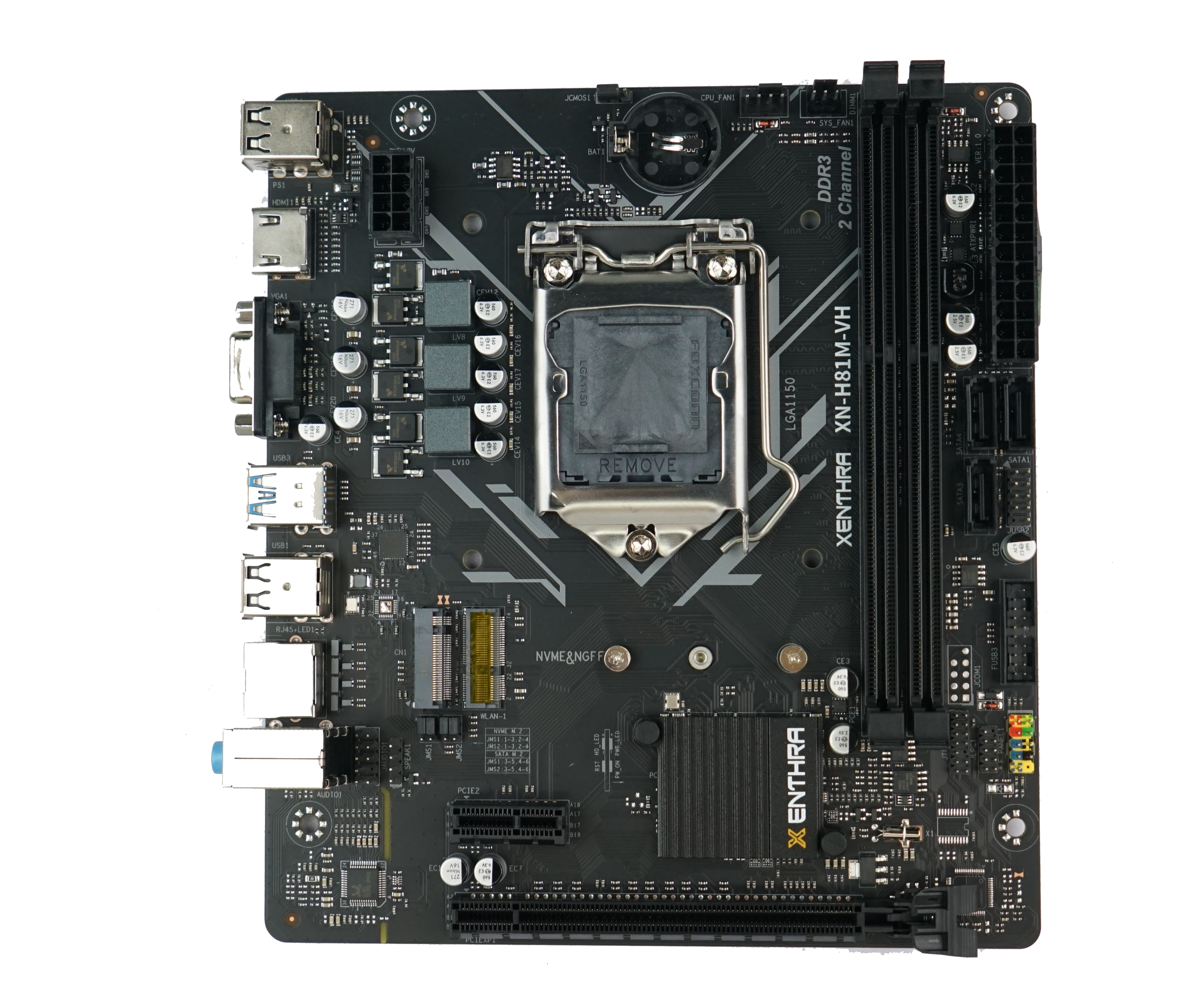

XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Mirco-ATX Motherboard

Description

<table style="height: 1017px;" width="1285"><tbody><tr><td width="95">Chipset</td><td width="605">Intel B85</td></tr><tr><td rowspan="2" width="95">CPU</td><td width="605">Intel LGA1150 Series CPU</td></tr><tr><td width="605">Selectable ：G1820/I3-4330/I5-4590S/i7-4770/E3-1230V3</td></tr><tr><td width="95">RAM</td><td width="605">2*DDR3 DIMM，1600MHz/16G，Single slot supports up to 8G</td></tr><tr><td width="95">Storage</td><td width="605">1×M.2 slot (supports PCIE 2.0x4 and SATA 3.0 modes via jump-start switching protocol); 1×SATA 3.0, 2×SATA 2.0</td></tr><tr><td width="95">Displays port</td><td width="605">1*HDMI；1*VGA</td></tr><tr><td width="95">Audio</td><td width="605">1*Line out；1*Mic In；1*Line In；1*Audio Built-in pin</td></tr><tr><td width="95">Audio chip</td><td width="605">1*Realtek High-definition audio chip</td></tr><tr><td width="95">PCIE slot</td><td width="605"><p>1*PCIE X16 slot（PCIE2.0 X16 signal）</p><p>1*PCIE X1 slot （PCIE2.0 X1 signal）</p></td></tr><tr><td width="95">Network</td><td width="605">1*RJ45 port</td></tr><tr><td width="95">Network Chip</td><td width="605">1*Realtek Gigabit network card chip</td></tr><tr><td width="95">TPM</td><td width="605">1*14Pin TPM2.0 port</td></tr><tr><td width="95">USB</td><td width="605">IO interfaces: 2×USB3.0 and 4×USB2.0. Built-in pins: 2 sets of FUSB pins (expandable to 4 USB2.0 ports).</td></tr><tr><td width="95">Inserted Pin</td><td width="605">1*FPANEL faceplate pin; 1*4-pin CPU fan; 1*3-pin SYS fan</td></tr><tr><td width="95">Power input</td><td width="605">24Pin+4Pin ATX convenienve receptacle</td></tr><tr><td width="95">Product size</td><td width="605">190 x 170mm x 4L</td></tr><tr><td width="95">Power dissipation</td><td width="605">Standby power consumption: 20–45W Full load power consumption: 90–120W (for reference only, excluding independent graphics card power consumption)</td></tr><tr><td width="95">Others</td><td width="605">1 JCMOS pin; 2×5-pin diagnostic card interface</td></tr></tbody></table><p>&nbsp;</p><p>[video width="1920" height="1080" mp4="https://mizantrade.com/wp-content/uploads/2026/07/H81M.mp4"][/video]</p>
